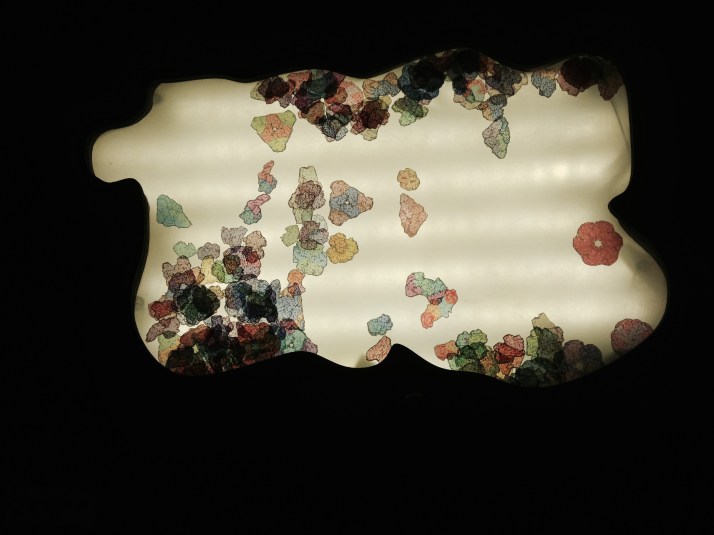

The end result, titled “Window into the cell”, exhibited at UWM’s Arts+Technology night, May 18th, 2016.

CHO_cytoplasm_window

I was initially a bit disappointed as there weren’t enough proteins to really give a sense of molecular crowding, also, I did not anticipate the proteins would be so non-uniformly distributed, but the vibration is creating a sort of cymatic pattern so different areas have different energies (different areas are more attractive then others, due to shape)- the silver lining is that this is not entirely unlike in a cell.  I played around with using a lower vibration intensity at the end to try to jiggle them to the center again- 2 seconds was not enough, will have to play more with that.  Pete suggested warping the acrylic to  try and draw them towards the center.

Areas my proteins prefer:


Immediately before arts/tech night the 3D printed motor bracket broke off, so the motor was bouncing around…

View original post 46 more words

fabricating the motorized cell/cytoplasm sculpture

Jess's maker blog

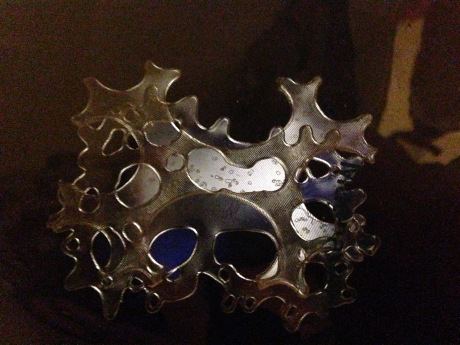

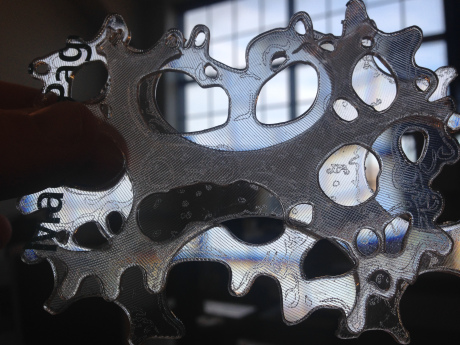

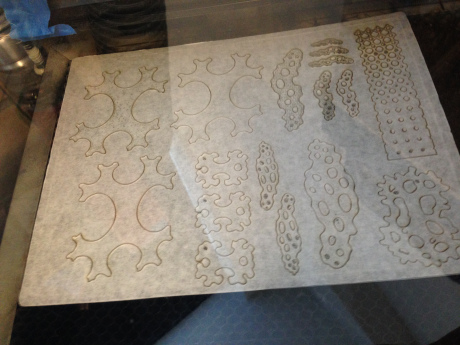

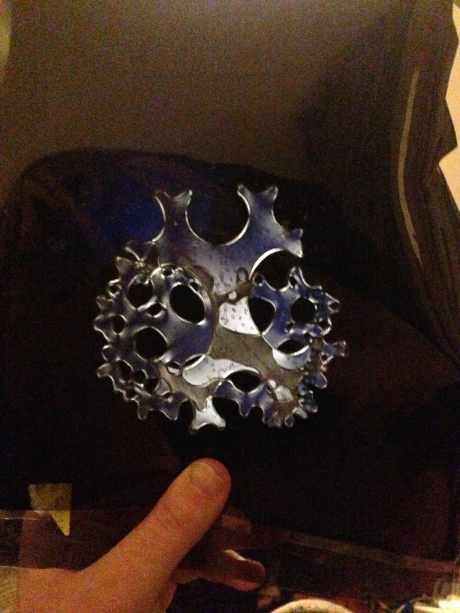

So the only piece of acrylic I had big enough was mirrored.  I thought about leaving it that way as the reflections from the lights create a neat glistening effect in the fresnel-proteins.  But it just needed to be backlit, was too dreary without a glow.  So I sanded off the mirror backing then sandblasted the acrylic.

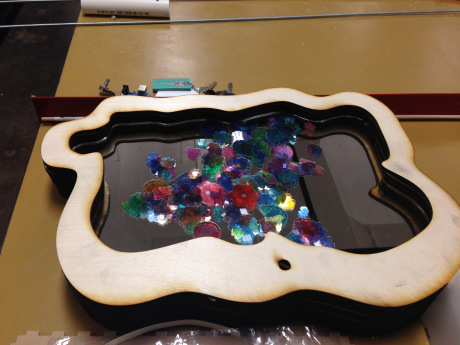

IMG_6973

IMG_6982

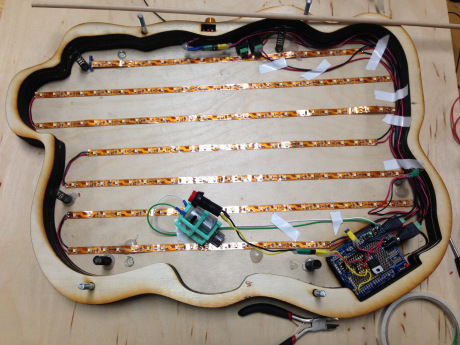

The guts.  There are two barrel jacks for power and a potentiometer which controls motor intensity in the back of the case.  As soon as I started adding electronics it became apparent how difficult it would be to access them.  Different things are tethered to different parts.

After doing a trial where the acrylic was resting on foam padding, it occurred to me that the platform should be resting on springs so to have the best range of motion. So springs happenend.

IMG_6986

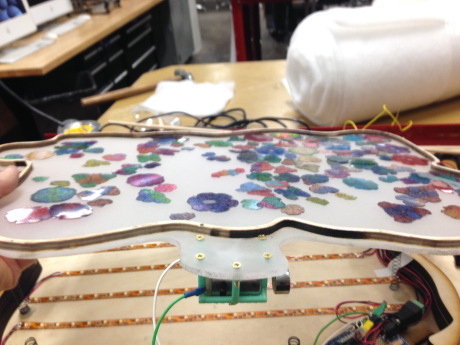

^The motor is secured beneath the sandblasted acrylic which has a rim to prevent…

View original post 3 more words

fabricating the motorized cell

Jess's maker blog

Adventures in vibrating platform fabrication: so for my cytoplasm sculpture, I started with making a box and immediately completely hated it.  It needed to be atleast round, if not more organic shaped.  So I drew inspiration from my existing micrograph:

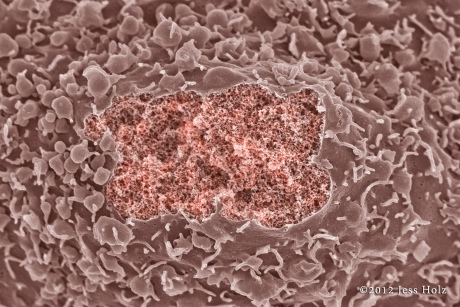

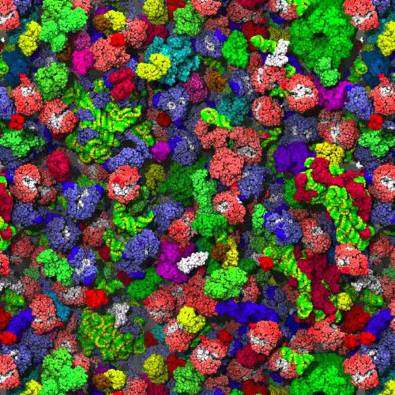

CHO_cytoplasm_window

IMG_6938

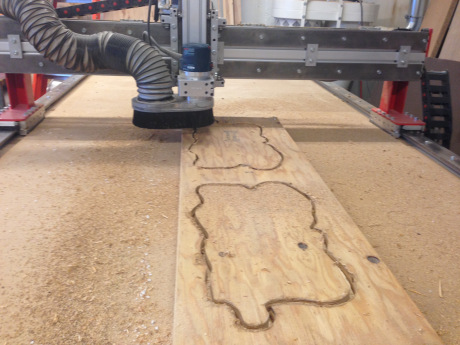

My original design called for three 1.75″ plywood parts stacked together, to be CNC routed.  I started (above) but needed a different bit.  Unfortunately the motor driver on the CNC burned out after that, so I tried to have it done at milwaukee makerspace- when there computer power supply burned out.  So the guy that was helping me suggested to laser cut it- their laser cutter is a few inches bigger (makes a huge difference).  Meanwhile I still have this thick plywood that is actually sort of pretty, with a weird ass shape carved in it.

So I made my design a bit less tall and we cut it out of 1/4″ baltic birch plywood, in 12…

View original post 80 more words

cell sculpture electronics

Jess's maker blog

unnamed

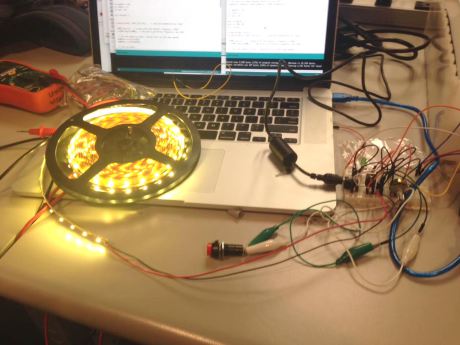

Tonight I worked on the electronics for my cell sculpture.  The DC vibration motor is controlled by the adafruit motor shield (v2).  The motor will be triggered by a pushbutton to turn it on for 10-15 seconds, its’ overall speed controlled by a potentiometer.  The button will also cause a white LED strip (backlighting) to fade in, then fade out after the motor finishes.  Here’s what the wiring looks like (DC motor not pictured):

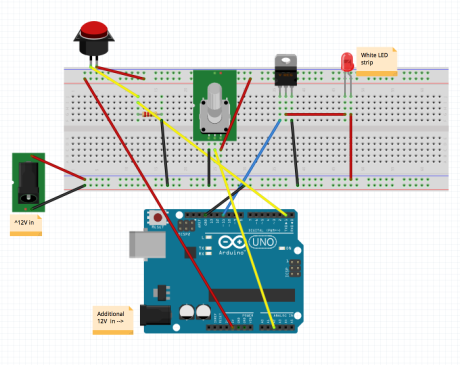

fritzing

Here is the arduino code:

//For use with the Adafruit Motor Shield v2
*/

#include <Wire.h>
#include <Adafruit_MotorShield.h>
#include “utility/Adafruit_MS_PWMServoDriver.h”

// Create the motor shield object with the default I2C address
Adafruit_MotorShield AFMS = Adafruit_MotorShield();
// Or, create it with a different I2C address (say for stacking)
// Adafruit_MotorShield AFMS = Adafruit_MotorShield(0x61);

// Select which ‘port’ M1, M2, M3 or M4. In this case, M2
Adafruit_DCMotor *myMotor = AFMS.getMotor(2);
// You can also make another motor on port M2
//Adafruit_DCMotor *myOtherMotor =…

View original post 121 more words

neopixel light painter

Jess's maker blog

For my last project for Pete’s class I’ve been making a neopixel light painter, an arduino controlled LED strip for painting digital images over long exposures.  My background in photography made me naturally curious to try it and what better subject matter then flourescent microscopy! Many fluorescent microscopes work by rastering a tiny point of light across the sample, so dragging and LED strip to replay the image seems appropriate, somehow.  I would like to play around with scale, in how the images are juxtaposed with their surroundings.  Anyway, there is amazing documentation on how to build a light painter here: https://learn.adafruit.com/neopixel-painter/overview.  Warning: neopixels are not the cheapest.

After some adventures in soldiering and troubleshooting loose connections I am proud to present my fluorescent cell painting stick!

IMG_9173

The cell nucleus (often stained blue with a DNA stain called dapi) would make awesome moon(s) on the horizon, I think.  Vesicles often look like little glowing dots…

View original post 49 more words
